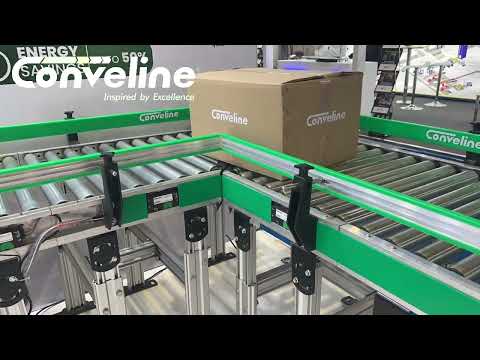

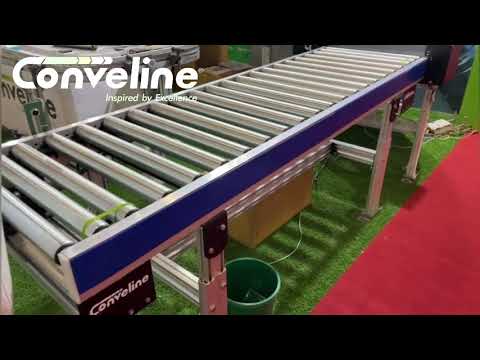

Roller Conveyor Systems
Conveline's pallet conveyor systems are robust, heavy duty and built to the highest standards of quality. Hard wearing and known for its excellence performance, our pallet conveyor systems provide high performance solutions for a variety of industries. Our pallet chain conveyors and pallet roller conveyors can be built to suit Australian pallets, Euro pallets or custom size pallets. Combined with pallet turntables, shuttle carts, pallet stackers and pallet dispensers, Conveline can provide the complete pallet conveyor system to suit your application. Our engineers have extensive experience in the design of pallet conveyor systems for a multitude of applications and can assist you with layouts and equipment selection to optimize your pallet handling system.
The CONVELINE conveyor system 9001 series - No load is too heavy: Variable complete program for the transportation and storage of heavy pallets and box pallets.
Features
- Maximum length of the standard chain conveyor is 6,000mm.
- Simple construction, stable conveying of product.
- Complies with international safety standards.
- Modular design, easy installation and maintenance.
- Improve warehouse flow and decrease traffic
- Minimize labor load handling.
- Gentle handling - reduce product damage / precision and positioning.
- Improve system throughput, safety, ergonomics.
- Free up fork truck equipment for other tasks.
Options
- Motor Mounting positions
- Support leg
- Fixed guide
- Customise conveyor layout
- Automations support
Application
- Pallet handling application
- Flexible for all distribution channels
- Accumulation can be used as process buffer
- Excellent ability to sort groups of pallet into specific area for procession and shipping
- Can merge and sort pallet by variable areas
- Warehouses and distribution automation
- Integration partners use as AS/RS, picking software's, autonomous mobile robots, palletizer, etc.
- Easy to assemble module application or variable site changes applications
Specifications
- Modern, ergonomic, Heavy duty design
- Standard Width 1000mm to 1500mm
- Standard Length 1200mm to 6000mm
- Frame Thickness 5mm
- Rollers 76mm or 89mm with single or Double sprocket
- Roller Pitch 100mm, 150mm, 200mm
- Load capacity 500kg to 1500kg
- Speed from 5m/min to 15m/min
